Interpump PUMP C2W2011 DX

SKU 3G-ITP-00115

Brand
Interpump
Item
PUMP C2W2011 DX
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
11 L/min
Pressure
200 bar
Power
4.19 kW
Speed
1450 RPM
Weight
7 kg
Dimensions
241.5 mm
Power
5.7 HP
Flow (US)
2.91 GPM
Pressure
20 MPa
Pressure
2900 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

POMPA C2W2011 DX by Interpump delivers reliable performance for demanding industrial applications. This Italian-engineered pump generates 4.19 kW at 1450 RPM, achieving 11 L/min flow at 200 bar maximum pressure—ideal for high-pressure cleaning, surface treatment, and hydraulic systems across manufacturing and maintenance sectors. Compact dimensions (241.5 mm length) and 7 kg weight enable flexible installation in space-constrained environments. Available from 3G Electric Singapore, this Interpump industrial pump combines robust construction with consistent output for professionals requiring dependable equipment.

Spare Parts & Repair Kits

Official C2W2011 parts list — 66 parts, 66 available in catalog

Official Parts List

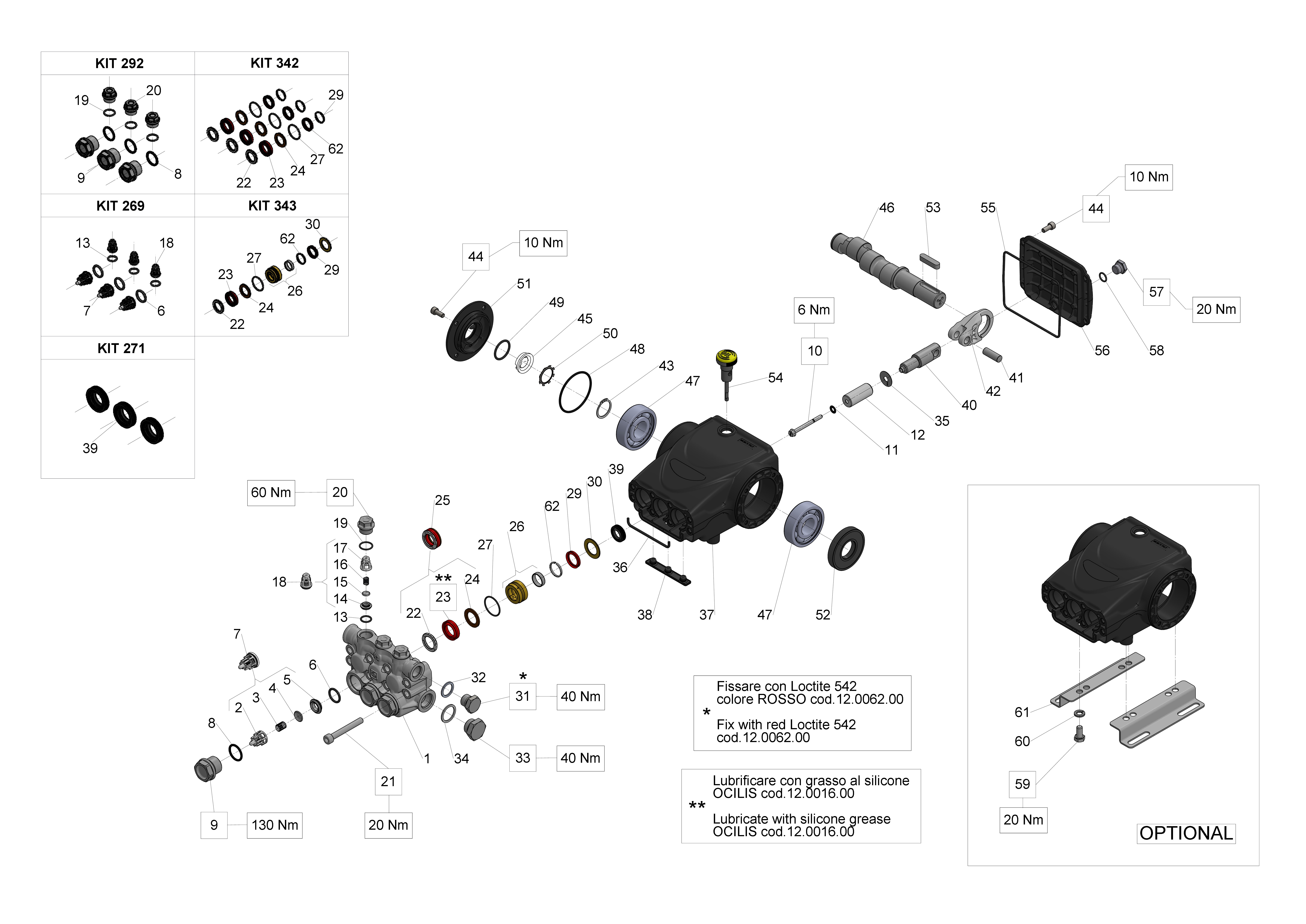

Exploded Diagram — Male shaft (key)View full size
C2W2011 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT271
View
KIT292
View
KIT342
KIT 342 PACKING D. 18 C2W
34034201×1Available
View
KIT343
KIT 343 CPL. SEAL D. 18 C2W
34034301×1Available
View

Individual Components

PosCodeDescriptionQty
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17 NICKEL
98222500×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.18X42
58040209×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
O-RING 15,60X1,78 (2062)
90359300×3Available
View
20
PLUG M18X1,5X10 D.23 (NICK.)
98213750×3Available
View

Need multiple parts? Request a bundled quote

66 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official C2W2011 parts list — Industrial Pumps (Car Wash Versions Series 58 C2W)

Recommended Spare Parts

Accessories

CIRCLIP D. 25 UNI 7435

90063500

Spare Parts

SPONGE GASKET D.3X94

58210582

Valves

VALVE PLATE

36200176

Spare Parts

KIT 342 PACKING D. 18 C2W

34034201

Spare Parts

RING FOR SEAL D.18

58210870

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

O-RING 26,70X1,78 (2106)

90360600

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Valves

VALVE CAP M24X1,5X17 NICKEL

98222500

Spare Parts

KIT 269 INTAKE/DELIVERY VALVES

34026901

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Spare Parts

PUMP CRANKCASE

58010022
