InterpumpPumps & Compressors

Available

Interpump PUMP WS92

SKU 3G-ITP-03824

Brand

Interpump

Item

PUMP WS92

Category

Pumps & Compressors

Technical Specifications

Interpump

Flow Rate

18 L/min

Pressure

90 bar

Power

2.94 kW

Weight

14 kg

Power

4 HP

Flow (US)

4.75 GPM

Pressure

9 MPa

Pressure

1300 PSI

rotation rpm

1450

dimensions mm

298x235.5x176

Sign in to view pricing

Create a free account to submit your RFQ and download technical documents.

Log In Create Free Account

Pair with a Service

Installation & Commissioning

Professional setup and verification by our technicians

Ongoing Maintenance Plan

Scheduled preventive maintenance for this equipment

Product + Service Bundle

Combined quote for equipment, installation, and service

Solutions Engineering

Need guidance on product selection or system design?

Contact Our Engineering Team

Interpump Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump WS92 high-pressure plunger pump — 18 L/min at 90 bar (1300 PSI). 2.94 kW / 4 HP at 1450 RPM. Triplex design, 14 kg. Dimensions: 298x235.5x176 mm. Genuine Italian-engineered industrial pump from 3G Electric Singapore.

Spare Parts & Repair Kits

Official WS92 parts list — 127 parts, 62 available in catalog

Official Parts List

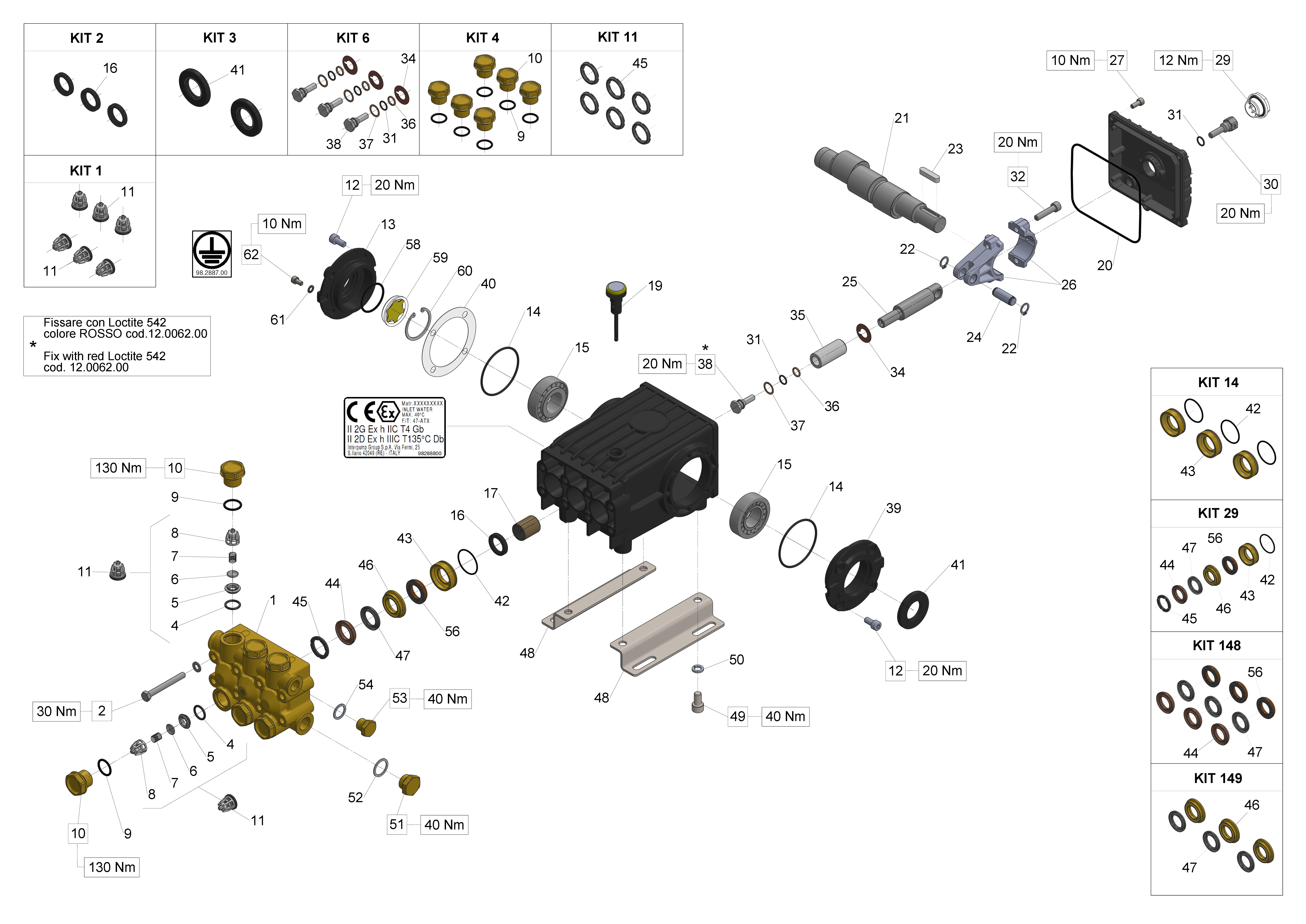

Exploded Diagram — Male shaft (key)View full size

WS92 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT1

KIT 1 INTAKE/DELIVERY VALVE

34000101×1Available

KIT2

KIT 2 OIL SEAL D. 22X32X5,5

34000201×1Available

KIT3

KIT 3 OIL SEAL D.30X55X7

34000301×1Available

KIT4

KIT 4 INTAKE/DEL. VALVE CAPS

34000401×1Available

KIT6

KIT 6 PISTON BOLT

34000601×1Available

KIT11

KIT 11 HEAD RING D. 22

34001101×1Available

KIT14

KIT 14 PACKING RETAINER D.22

34001401×1Available

KIT29

KIT 29 COMPL.SEAL FOR PIST.D22

34002901×1Available

KIT148

KIT 148 SEAL D.22X35

34014801×1Available

KIT149

KIT 149 INT.RING D.22 W/RESTOP

34014901×1Available

Individual Components

PosCodeDescriptionQty

1

47120141×1Available

2

HEX-HEAD SCREW M08X70 UNI5737 10.9 Fe/Zn5c1A+De

99320600×8Available

4

O-RING 17,12X2,62 (3068)

90384100×6Available

5

36200366×6Available

6

36200176×6Available

7

SPRING D. 9,4X14,8

94737600×6Available

8

36200251×6Available

9

O-RING 20,29X2,62(3081)

90384700×6Available

10

98222000×6Available

11

36703201×6Available

12

SCREW M 8x16 UNI 5931

99303900×8Available

13

CLOSED SIDE COVER (47-66)

47151122×1Available

14

O-RING 67,95X2,62 (3268)

90391300×2Available

15

91837500×2Available

16

OIL SEAL 22x32x5

90162500×3Available

17

BUSHING 22X25X30

90912600×3Available

19

OIL DIP-STICK G3/8X80

98210600×1Available

20

O-RING D.133.02X 2,62(3525)

90392200×1Available

21

CRANKSHAFT C.12 S.p.f. U.S.

47021835×1Available

22

CIRCLIP D.12 UNI 7435

90055700×6Available

Need multiple parts? Request a bundled quote

62 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote

✓ Genuine manufacturer parts✓ Expert technical support✓ Worldwide shipping

Official WS92 parts list — Industrial Pumps (Series 47)

Recommended Spare Parts

Spare Parts

PISTON SCREW

47219566

Accessories

HEX-HEAD SCREW M08X70 UNI5737 10.9 Fe/Zn5c1A+De

99320600

Accessories

WASHER 14X28X0,5

96728600

Valves

VALVE PLATE

36200176

Accessories

PLUG G3/8X13

98210000

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

PISTON D. 22x50

47040509

Spare Parts

HEAD RING D. 22

46100051

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Spare Parts

KIT 29 COMPL.SEAL FOR PIST.D22

34002901

Spare Parts

PACKING 22x35

90272500

Accessories

CONNECTING-ROD PIN D.13X35,5

97738000
