Interpump PUMP ET1B1808

SKU 3G-ITP-03784

Brand
Interpump
Item
PUMP ET1B1808
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
7.5 L/min
Pressure
275 bar
Power
3.97 kW
Weight
7 kg
Power
5.4 HP
Flow (US)
1.98 GPM
Pressure
27.5 MPa
Pressure
4000 PSI
rotation rpm
1450
dimensions mm
241.5x215x129.5
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump ET1B1808 high-pressure plunger pump — 7.5 L/min at 275 bar (4000 PSI). 3.97 kW / 5.4 HP at 1450 RPM. Compact triplex design, 7 kg. Dimensions: 241.5x215x129.5 mm. Genuine Italian-engineered industrial pump from 3G Electric Singapore.

Spare Parts & Repair Kits

Official ET1B1808 parts list — 176 parts, 64 available in catalog

Official Parts List

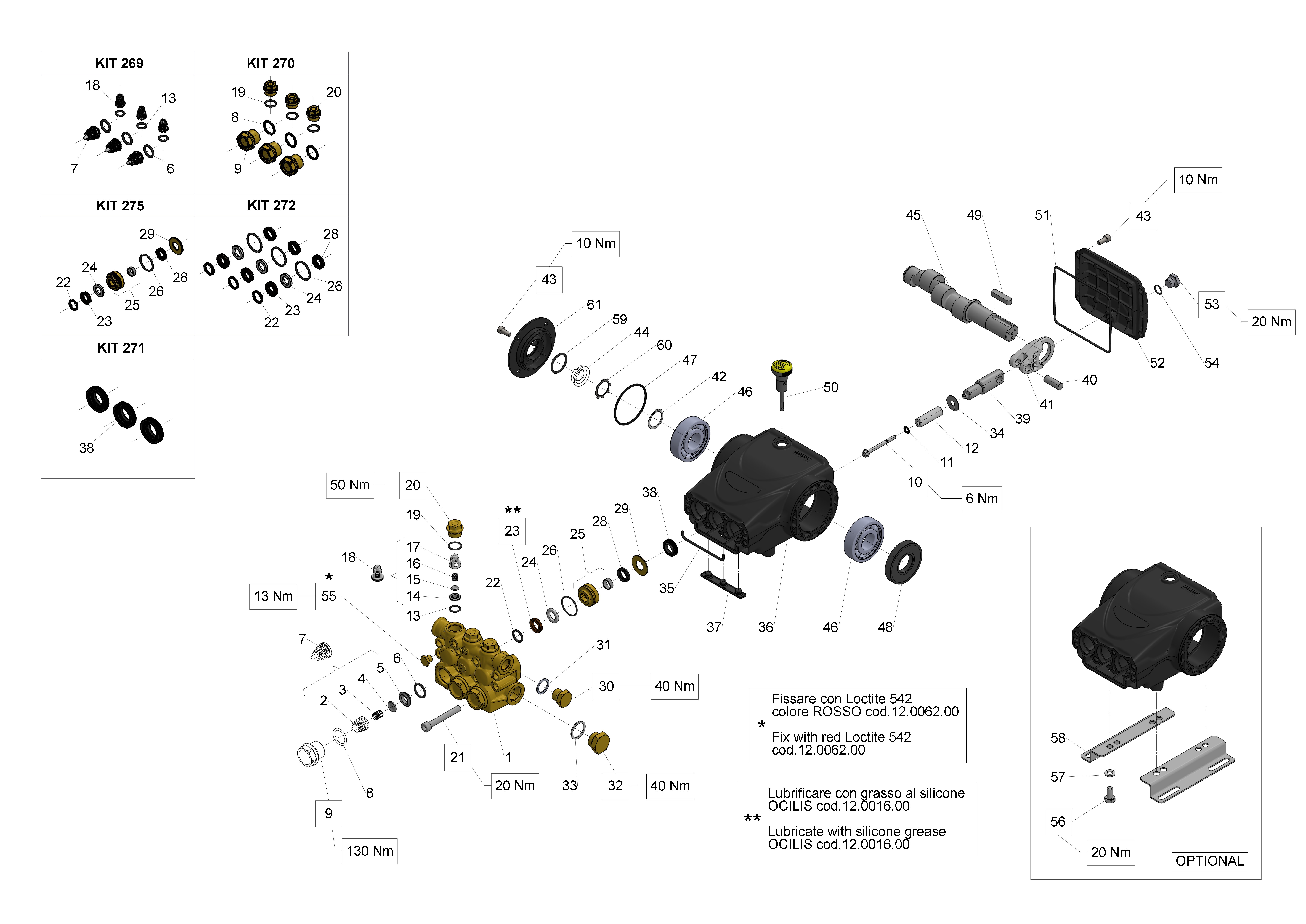

Exploded Diagram — Male shaft (key)View full size
ET1B1808 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT270
KIT 270 VALVE PLUGS 58 SERIES
34027001×1Available
View
KIT271
View
KIT272
KIT 272 PACKING D.13 58 SERIES
34027201×1Available
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17
98222600×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.13X42
58040009×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
O-RING 15,60X1,78 (2062)
90359300×3Available
View
20
VALVE CAP M18X1,5X10
98213700×3Available
View

Need multiple parts? Request a bundled quote

64 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official ET1B1808 parts list — Industrial Pumps (Series 53 ET1 brass)

Recommended Spare Parts

Spare Parts

O-RING 8,73X1,78 - (108)

90358100

Spare Parts

PUMP CRANKCASE

58010022

Spare Parts

PACKING D.13X20X5 LP

90260100

Accessories

CIRCLIP D. 25 UNI 7435

90063500

Spare Parts

SPONGE GASKET D.3X94

58210582

Valves

VALVE PLATE

36200176

Accessories

PLUG G3/8X13

98210000

Spare Parts

ANTI-EXTR.RING D.13X21X3

90507650

Spare Parts

HEAD RING D. 13

44100251

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

INLET NIPPLE G 3/4

36318251

Spare Parts

KIT 272 PACKING D.13 58 SERIES

34027201
