What is the CBM Fluidics 18.00 60° SF oil nozzle used for?

The CBM Fluidics 18.00 60° SF is an oil nozzle designed for commercial and industrial heating burner systems. It delivers 1.8 L/h fuel flow with a 60° spray angle, suitable for applications requiring efficient atomization in boiler and furnace burners across Singapore and Southeast Asia.

What are the specifications of the CBM Fluidics 18.00 60° SF nozzle?

This CBM nozzle operates at 1.8 L/h flow rate with 6 bar minimum spray pressure and 60° spray angle. Power output is 16.6 kW with 1.5 kg/h fuel consumption at 92% efficiency. Heat value is 42700 kJ/kg; fuel viscosity must be 3.4 cSt per EN 293.

Where can I buy the CBM Fluidics 18.00 60° SF nozzle in Singapore?

3G Electric supplies the CBM Fluidics 18.00 60° SF nozzle to Singapore and the broader Southeast Asia region. We source, import, and deliver with full customs and logistics coordination, ensuring on-time arrival for your burner retrofit or maintenance projects.

How do I select the correct oil nozzle pressure and spray angle?

Nozzle selection depends on burner design, fuel type, and desired heat output. The CBM Fluidics 18.00 60° SF suits applications needing 16.6 kW output with wide spray coverage. Verify minimum operating pressure (6 bar here), fuel viscosity (3.4 cSt), and combustion chamber geometry before ordering.

Technical Documents

(1)

Technical Document 1

PDF Document

Complete Solution

Need installation, maintenance, or a bundled quote?

Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.

Product + Service Bundle QuoteQuote

Quick Inquiry

CBMOil Nozzles

Available to Order

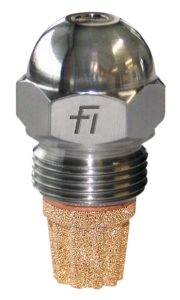

CBM Fluidics 18,00 60° SF

CBM Fluidics 18.00 60° SF oil nozzle delivers 1.8 L/h flow at 6 bar minimum pressure with 60° spray angle for heating applications. Operates at 92% efficiency with 42700 kJ/kg heat value and 1.5 kg/h fuel…

SKU 3G-CBM-03842

Also listed as: FLU 05059 · FLU-05059

Brand

CBM

Item

Fluidics 18,00 60° SF

Technical Specifications

CBM

heat value

42700 kJ/kg at 92% efficiency

nozzle type

Fluidics 18.00 60° SF

spray angle

60°

power output

16.6 kW

spray pattern

solid

fuel viscosity

3.4 cSt per EN 293

flow rate usgph

18

fuel consumption

1.5 kg/h

flow rate nominal

1.8 L/h (0.40 USgph)

flow rate at 7 bar

1.8 L/h

min spray pressure

6 bar

fuel specific gravity

0.84 kg/l

View Full Spec Sheet

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

SG-based team

Qty

WhatsApp Telegram

Create a free account to submit your RFQ and download technical documents.

Not sure this is the right part? Get a recommendation.

Pair with a Service

Installation & Commissioning

Professional setup and verification by our technicians

View

Ongoing Maintenance Plan

Scheduled preventive maintenance for this equipment

View

Product + Service Bundle

Combined quote for equipment, installation, and service

View

Solutions Engineering

Need guidance on product selection or system design?

Contact Our Engineering Team

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Used in

Common applications for CBM

Industrial boilers — CBM circulation pumps (mod. CM 30W) and solenoid valves (ELV series) for heating-loop control and pump staging.

Burner systems — CBM oil nozzles (FLU atomizer types), electrodes (ELC 200 mm), and solenoid coils (ELV 230V AC) for combustion ignition and flame supervision.

Plant maintenance and retrofit — CBM cable glands (CLI M25), motor couplings (ACC type D), and small-radius fittings (RAC 90°) for equipment reconfiguration and sensor integration.

Boiler water treatment — CBM chlorine test kits (DET free+combined) for feedwater and circulating-water quality monitoring in closed-loop systems.

Pump and motor assembly — CBM couplings, fittings, and cable glands for assembly and rewinding of industrial motors, circulation pumps, and auxiliary equipment.

CBM Products

3G Electric supplies CBM oil nozzles. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.

Browse all CBM products →Contact our engineers →
