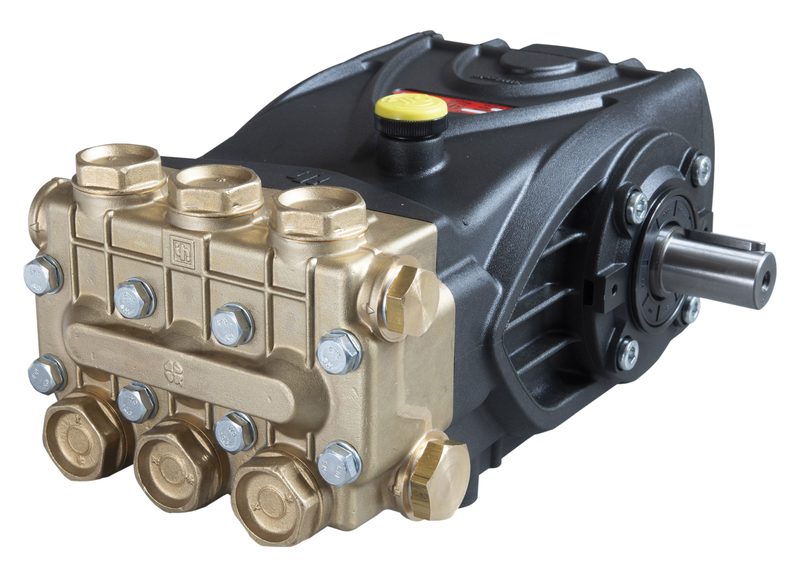

Interpump PUMP WS251 R ATEX

SKU 3G-ITP-01947

Brand
Interpump
Item
PUMP WS251 R ATEX
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
15 L/min
Pressure
250 bar
Power
7.35 kW
Speed
1450 RPM
Weight
14.5 kg
Dimensions
317.5 mm
Power
10 HP
Flow (US)
3.96 GPM
Pressure
25 MPa
Pressure
3625 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump's PUMP WS251 R ATEX delivers reliable performance for hazardous area applications. This industrial pump generates 7.35 kW of power at 1450 RPM, producing 15 L/min flow at 250 bar pressure rating. ATEX-certified design ensures safe operation in explosive atmospheres across petrochemical, chemical, and pharmaceutical industries. Weighing 14.5 kg with compact dimensions, the Italian-engineered unit suits confined installations. Ideal for high-pressure cleaning, process transfer, and spray applications requiring compliance with strict safety standards. Available from 3G Electric Singapore, an Interpump distributor.

Spare Parts & Repair Kits

Official WS251 parts list — 128 parts, 62 available in catalog

Official Parts List

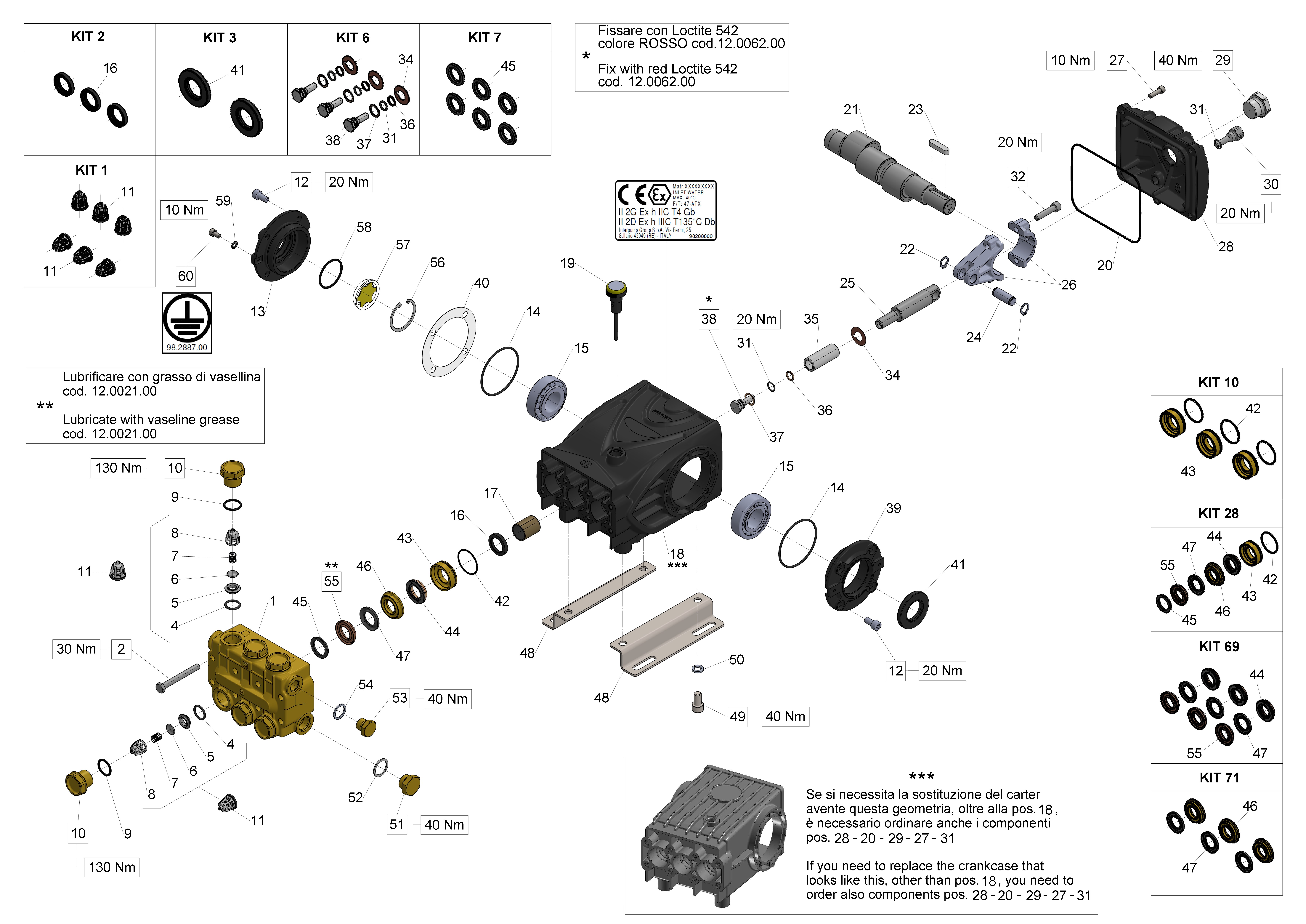

Exploded Diagram — Male shaft (key)View full size
WS251 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT1
KIT 1 INTAKE/DELIVERY VALVE
34000101×1Available
View
KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View
KIT6
KIT 6 PISTON BOLT
34000601×1Available
View
KIT7
KIT 7 HEAD RING D.20
34000701×1Available
View
KIT10
KIT 10 PACKING RETAINER D.20
34001001×1Available
View
KIT28
KIT 28 COMPL.SEAL FOR PIST.D20
34002801×1Available
View
KIT71
KIT 71 INTERMEDIATE RING D.20
34007101×1Available
View

Individual Components

PosCodeDescriptionQty
1
MANIFOLD WS251
47121741×1Available
View
4
O-RING 17,12X2,62 (3068)
90384100×6Available
View
5
VALVE SEAT
36200366×6Available
View
6
VALVE PLATE
36200176×6Available
View
7
SPRING D. 9,4X14,8
94737600×6Available
View
8
VALVE CAGE
36200251×6Available
View
9
O-RING 20,29X2,62(3081)
90384700×6Available
View
10
PLUG M24x1,5x17,5
98222800×6Available
View
11
VALVE ASSY.
36703201×6Available
View
12
SCREW M 8x16 UNI 5931
99303900×8Available
View
13
CLOSED SIDE COVER (47-66)
47151122×1Available
View
14
O-RING 67,95X2,62 (3268)
90391300×2Available
View
15
TAPER BEARING 32206 SKF
91837800×2Available
View
16
OIL SEAL 22x32x5
90162500×3Available
View
17
BUSHING 22X25X30
90912600×3Available
View
18
CRANKCASE
47010822×1Available
View
19
OIL DIP-STICK G3/8X80
98210600×1Available
View
20
O-RING D.133.02X 2,62(3525)
90392200×1Available
View
21
CRANKSHAFT C.12 S.p.f. U.S.
47021835×1Available
View

Need multiple parts? Request a bundled quote

62 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official WS251 parts list — Industrial Pumps (Series 53 E1)
