Interpump PUMP W5015 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP W5015 R

SKU 3G-ITP-01757

Brand
Interpump
Item
PUMP W5015 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
15 L/min
Pressure
500 bar
Power
14.7 kW
Speed
1450 RPM
Weight
19.5 kg
Dimensions
351.5 mm
Power
20 HP
Flow (US)
3.96 GPM
Pressure
50 MPa
Pressure
7250 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP W5015 R delivers reliable high-pressure pumping performance for demanding industrial applications. Built in Italy, this 14.7 kW industrial pump generates 500 bar pressure and 15 L/min flow rate, making it ideal for cleaning systems, pressure testing, and hydraulic applications. Operating at 1450 rpm with a compact 351.5 mm footprint, the unit weighs just 19.5 kg for straightforward installation. The PUMP W5015 R's robust construction ensures consistent performance in manufacturing, food processing, and chemical industries. Available from 3G Electric Singapore, your Interpump distributor, with full technical support and genuine spare parts.

Spare Parts & Repair Kits

Official W5015 parts list — 137 parts, 47 available in catalog

Official Parts List

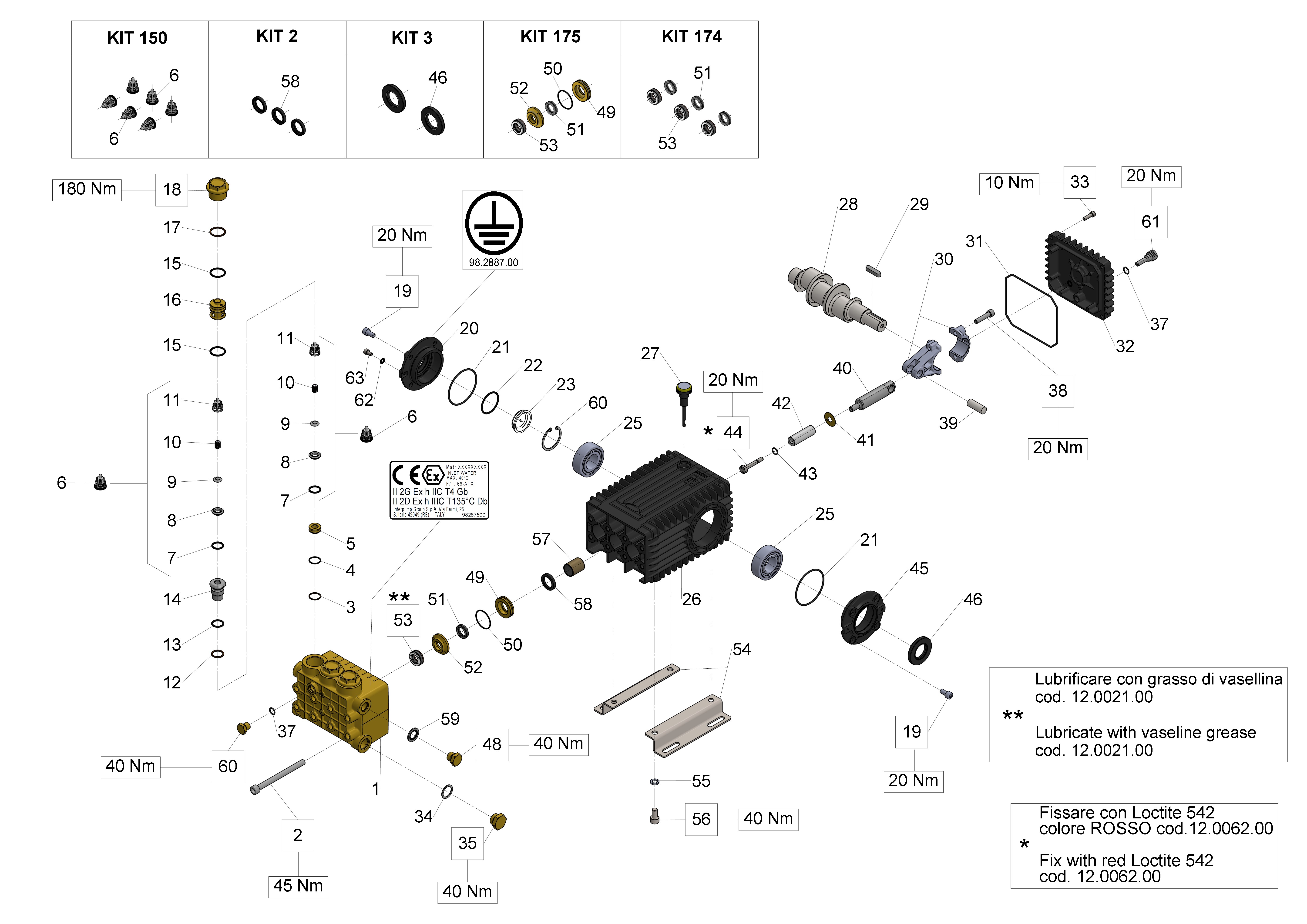

Exploded Diagram — Male shaft (key)View full size
W5015 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View
KIT150
KIT 150 INTAKE/DEL.VALVE
34015001×1Available
View

Individual Components

PosCodeDescriptionQty
6
INTAKE/DELIVERY VALVE
36712101×6Available
View
7
O-RING 17,12X2,62 (3068)
90384100×6Available
View
8
VALVE SEAT
36200366×6Available
View
9
SPHERICAL VALVE
36203266×6Available
View
10
SPRING D. 9,4X14,8
94737600×6Available
View
11
VALVE CAGE
36202551×6Available
View
12
ANTI-EXTRUSION RING
90511500×3Available
View
13
O-RING 17,86X2,62 (123)
90384300×3Available
View
15
O-RING 23,81X2,62 (132)
90385700×6Available
View
17
ANTI-EXTR.RING D.24.7x29x1.5
90516500×3Available
View
19
SCREW M 8x16 UNI 5931
99303900×8Available
View
20
View
21
O-RING 67,95X2,62 (3268)
90391300×2Available
View
22
O-RING 39,34X2,62 (3156)
90387700×1Available
View
23
OIL SIGHT GLASS
70211801×1Available
View
24
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
25
ROLLER BEARING NJ2206EC
91838000×2Available
View
26
CRANKCASE
66010022×1Available
View
27
OIL DIP-STICK G3/8X80 W5015
98210600×1Available
View
28
CRANKSHAFT C.19 - D. 24
66020035×1Available
View

Need multiple parts? Request a bundled quote

47 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official W5015 parts list — Industrial Pumps (66 Series)

Recommended Spare Parts

Accessories

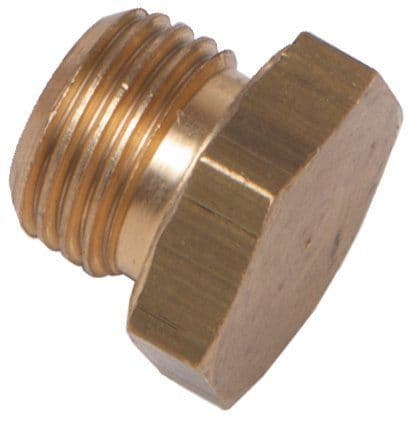

PLUG G3/8X13

98210000

Accessories

WASHER 21,5X27X1,5

96751400

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

PISTON GUIDE - S.S.

66050066

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Accessories

PLUG G1/2X10

98217600

Spare Parts

CRANKSHAFT C.19 - D. 24

66020035

Accessories

PLUG G1/4X10

98204300

Spare Parts

CONNECTING ROD-PIN D.14X39

97740500

Spare Parts

OIL DIP-STICK G3/8X80

98210600

Spare Parts

KIT 3 OIL SEAL D.30X55X7

34000301

Valves

INTAKE/DELIVERY VALVE

36712101
