Interpump PUMP W2035 R

SKU 3G-ITP-01676

Brand
Interpump
Item
PUMP W2035 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
35 L/min
Pressure
200 bar
Power
13.23 kW
Speed
1450 RPM
Weight
18.5 kg
Dimensions
340.5 mm
Power
18 HP
Flow (US)
9.25 GPM
Pressure
20 MPa
Pressure
2900 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP W2035 R delivers reliable industrial pumping performance with 13.23 kW power and 35 L/min flow capacity at 200 bar operating pressure. This Italian-engineered unit operates at 1450 rpm, weighing 18.5 kg with compact 340.5 mm dimensions, making it suitable for high-pressure applications in manufacturing, hydraulics, and industrial cleaning systems. The pump's 2900 psi rating ensures consistent operation in demanding environments. Available from 3G Electric Singapore, an Interpump distributor, the W02035-000 SKU provides efficient fluid transfer solutions for facilities requiring dependable industrial equipment.

Spare Parts & Repair Kits

Official W2035 parts list — 161 parts, 55 available in catalog

Official Parts List

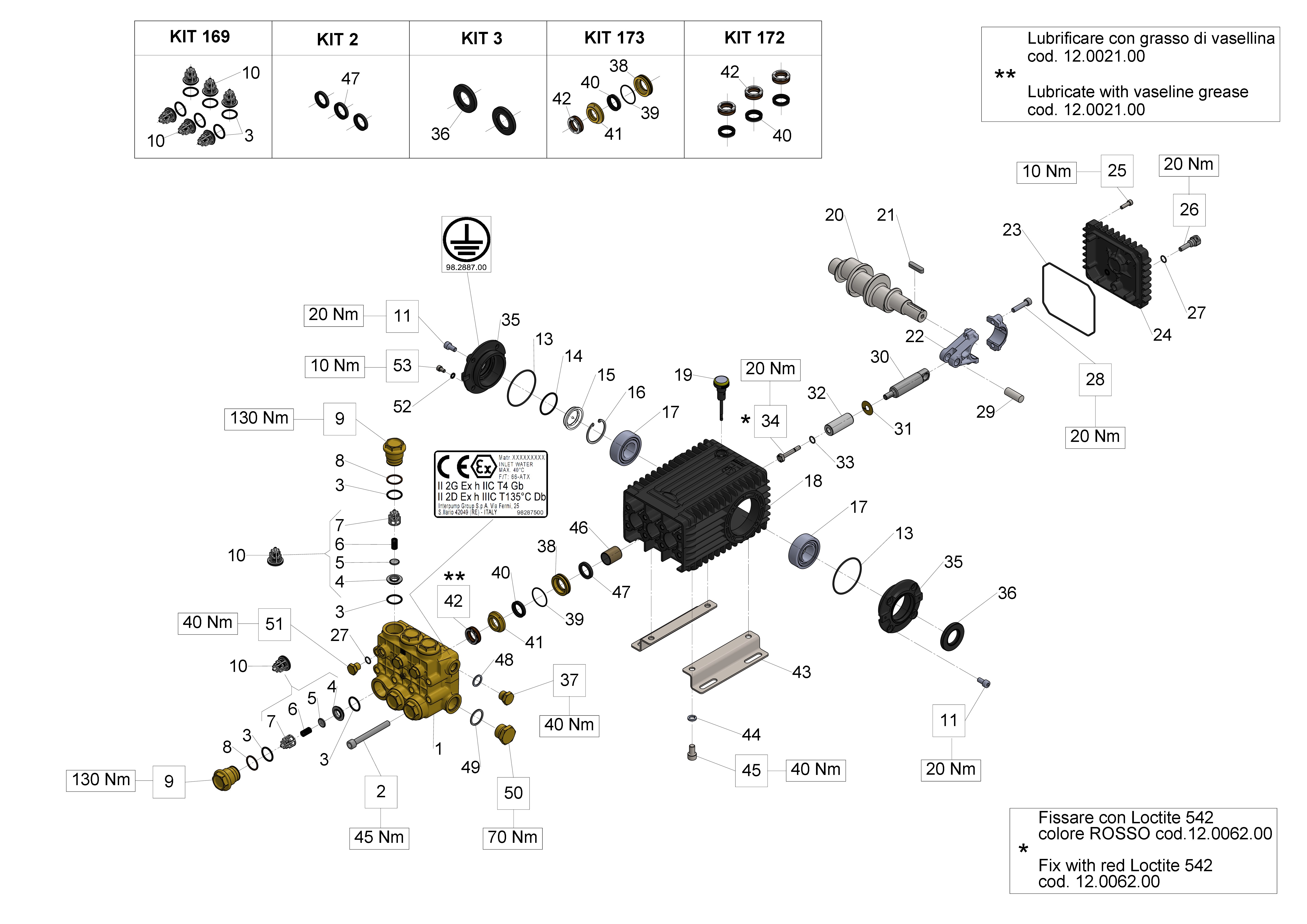

Exploded Diagram — Male shaft (key)View full size
W2035 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View
KIT169
KIT 169 INTAKE/DEL.VALVE (66)
34016901×1Available
View
KIT172
KIT 172 PACKING D.22 (66)
34017201×1Available
View
KIT173
KIT 173 COMPL.SEAL D.22 (66)
34017301×1Available
View

Individual Components

PosCodeDescriptionQty
1
PUMP HEAD (PISTON D.22) W2035
66120141×1Available
View
2
SCREW M10X90 UNI 5931 8.8
99380100×8Available
View
3
O-RING 23,81X2,62 (132)
90385700×12Available
View
4
VALVE SEAT
36203366×6Available
View
5
SPHERICAL VALVE
36203476×6Available
View
6
SPRING Dm. 10x18.5
94738800×6Available
View
7
VALVE CAGE
36203551×6Available
View
8
ANTI-EXTR.RING D.24.7x29x1.5
90516500×6Available
View
9
VALVE CAP M32x1.5x29.5
66130041×6Available
View
10
INTAKE/DEL.VALVE ASSY(66)
36712701×6Available
View
11
SCREW M 8x16 UNI 5931
99303900×8Available
View
12
View
13
O-RING 67,95X2,62 (3268)
90391300×2Available
View
14
O-RING 39,34X2,62 (3156)
90387700×1Available
View
15
OIL SIGHT GLASS
70211801×1Available
View
16
CIRCLIP D.45 (ZJ45)
90075600×1Available
View
17
ROLLER BEARING NJ2206EC
91838000×2Available
View
18
CRANKCASE
66010022×1Available
View
19
OIL DIP-STICK G3/8X80
98210600×1Available
View
20
CRANKSHAFT C.21 - D. 24
66020435×1Available
View

Need multiple parts? Request a bundled quote

55 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official W2035 parts list — Industrial Pumps (66 Series)

Recommended Spare Parts

Accessories

PLUG G3/4X16

98226800

Accessories

PLUG G3/8X13

98210000

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

PISTON GUIDE - S.S.

66050066

Spare Parts

SPRING Dm. 10x18.5

94738800

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Spare Parts

KIT 169 INTAKE/DEL.VALVE (66)

34016901

Valves

INTAKE/DEL.VALVE ASSY(66)

36712701

Accessories

PLUG G1/4X10

98204300

Spare Parts

CONNECTING ROD-PIN D.14X39

97740500

Spare Parts

OIL DIP-STICK G3/8X80

98210600

Spare Parts

PISTON D. 22X54

66040109
