Interpump PUMP W130 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP W130 R

SKU 3G-ITP-01328

Brand
Interpump
Item
PUMP W130 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
9.5 L/min
Pressure
130 bar
Power
2.2 kW
Speed
1450 RPM
Weight
7.9 kg
Dimensions
225 mm
Power
3 HP
Flow (US)
2.5 GPM
Pressure
13 MPa
Pressure
1885 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump's PUMP W130 R delivers reliable industrial pumping performance with a 2.2 kW motor operating at 1450 RPM. This Italian-engineered unit generates 9.5 L/min flow capacity at 130 bar pressure, making it ideal for high-pressure cleaning, surface treatment, and industrial processing applications. Weighing just 7.9 kg with compact 225 mm dimensions, the W130 R offers excellent portability without compromising durability. Engineered for demanding industrial environments across manufacturing, automotive, and maintenance sectors, this centrifugal pump ensures consistent operation. Available from 3G Electric Singapore, an Interpump distributor, the PUMP W130 R (SKU: W00130-000) provides professional-grade reliability backed by expert local support.

Spare Parts & Repair Kits

Official W130 parts list — 287 parts, 61 available in catalog

Official Parts List

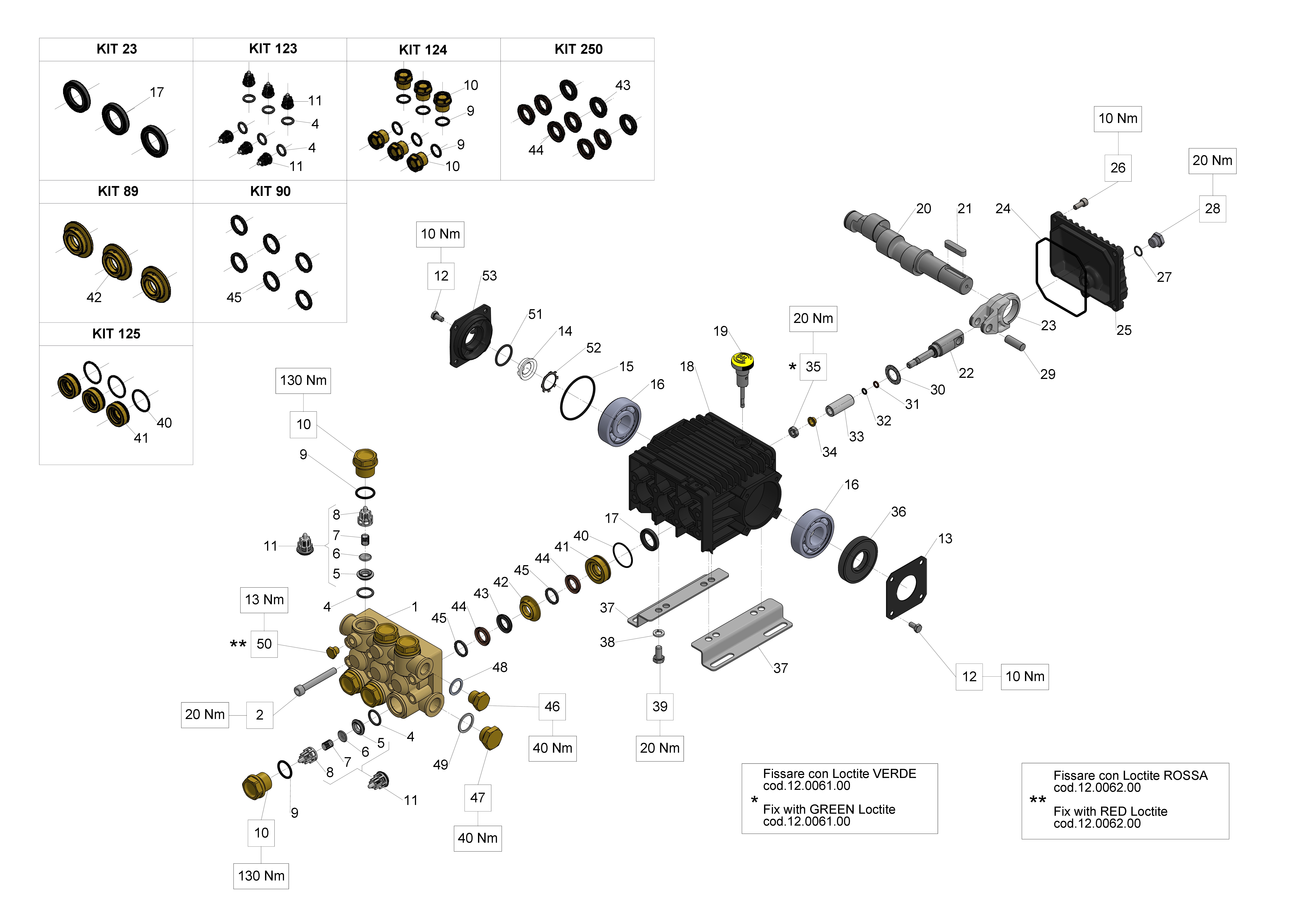

Exploded Diagram — Male shaft (key)View full size
W130 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT23
KIT 23 OIL SEAL D.20X30X5
34002301×1Available
View
KIT88
KIT 88 PACKING D. 15
34008801×1Available
View
KIT89
KIT 89 INTERMEDIATE RING D. 15
34008901×1Available
View
KIT90
KIT 90 HEAD RING D. 15
34009001×1Available
View
KIT123
KIT 123 INTAKE/DELIVERY VALVE
34012301×1Available
View
KIT124
KIT 124 VALVE CAPS
34012401×1Available
View
KIT125
KIT 125 PACKING RETAINER D.15
34012501×1Available
View
KIT130
KIT 130 CPL.SEAL PIST. D.15
34013001×1Available
View

Individual Components

PosCodeDescriptionQty
1
MANIFOLD D. 15 W130
44120041×1Available
View
2
SCREW M 8x60 UNI 5931
99317500×8Available
View
4
O-RING 17,12X2,62 (3068)
90384100×6Available
View
5
VALVE SEAT
36200366×6Available
View
6
VALVE PLATE
36200176×6Available
View
7
SPRING D. 9,4X14,8
94737600×6Available
View
8
VALVE CAGE
36202551×6Available
View
9
O-RING 20,29X2,62(3081)
90384700×6Available
View
10
VALVE CAP M24X1,5X17
98222600×6Available
View
11
INTAKE/DELIVERY VALVE
36711501×6Available
View
12
SCREW M 6x12 UNI 5739
99180700×8Available
View
13
CRANKCASE COVER
50150074×1Available
View
14
OIL LEVEL GAUGE
53210851×1Available
View
15
O-RING 56,82X2,62 (3225)
90389800×1Available
View
16
BALL BEARING 6305 SKF
91833100×2Available
View
17
OIL SEAL 20x30x5
90161400×3Available
View
18
CRANKCASE
44010022×1Available
View
19
OIL DIP-STICK G3/8X51
98210300×1Available
View
20
CRANKSHAFT C.13 (D.24)
44020635×1Available
View
21
KEY 8(h9)X7X35 UNI 6604/A
91489200×1Available
View

Need multiple parts? Request a bundled quote

61 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official W130 parts list — Industrial Pumps (Series 44)

Recommended Spare Parts

Accessories

WASHER 6,4X10X0,7

96693800

Spare Parts

O-RING 8,73X1,78 - (108)

90358100

Spare Parts

CONNECTING ROD

44030022

Spare Parts

INJECTOR SHUTTER

36256470

Accessories

CIRCLIP D. 25 UNI 7435

90063500

Spare Parts

O-RING 9,25X1,78 (2037)

90358200

Valves

VALVE PLATE

36200176

Accessories

NUT M8X1,25X5X13 UNI 5589

92221800

Spare Parts

KIT 89 INTERMEDIATE RING D. 15

34008901

Accessories

PLUG G3/8X13

98210000

Spare Parts

ANTI-EXTRUSION RING

90509000

Spare Parts

O-RING 9,92X2,62 SPEC. (112)

90382200
