Interpump PUMP W 928 DOUBLE SHAFT

SKU 3G-ITP-01504

Brand
Interpump
Item
PUMP W 928 DOUBLE SHAFT
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
15 L/min
Pressure
275 bar
Power
8.08 kW
Speed
1750 RPM
Weight
14.5 kg
Dimensions
327 mm
Power
11 HP
Flow (US)
3.96 GPM
Pressure
27.5 MPa
Pressure
4000 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP W 928 DOUBLE SHAFT delivers reliable performance for industrial applications requiring consistent pressure and flow. This Italian-engineered pump operates at 1750 RPM, generating 8.08 kW (11 hp) with a maximum pressure of 275 bar (4000 psi) and flow rate of 15 L/min. Weighing just 14.5 kg with compact 327mm dimensions, it suits high-pressure cleaning systems, hydraulic applications, and manufacturing equipment. The double shaft design ensures efficient power transmission across diverse industrial sectors. Available from 3G Electric Singapore, an Interpump distributor offering genuine products and technical support for your operational needs.

Spare Parts & Repair Kits

Official W928 parts list — 131 parts, 64 available in catalog

Official Parts List

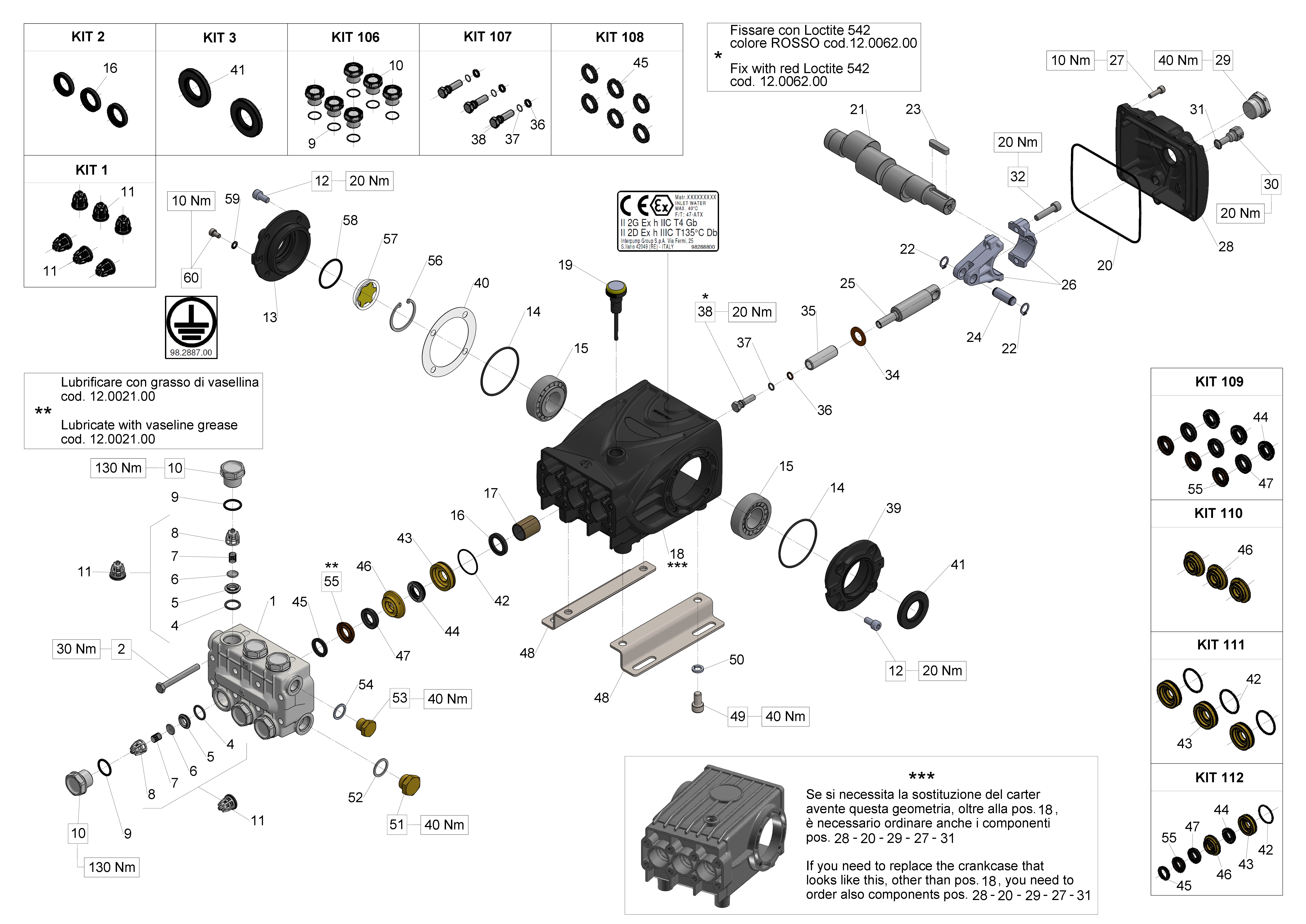

Exploded Diagram — Male shaft (key)View full size
W928 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT1
KIT 1 INTAKE/DELIVERY VALVE
34000101×1Available
View
KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View
KIT106
KIT 106 INTAKE/DEL. VALVE CAPS
34010601×1Available
View
KIT107
KIT 107 PISTON BOLT
34010701×1Available
View
KIT108
KIT 108 HEAD RING D. 16
34010801×1Available
View
KIT109
KIT 109 PACKING D.16 + RESTOP
34010901×1Available
View
KIT110
KIT 110 INTERM. RING D. 16
34011001×1Available
View
KIT111
KIT 111 PACKING RETAINER D. 16
34011101×1Available
View
KIT112
KIT 112 COMPL.SEAL PISTON D.16
34011201×1Available
View

Individual Components

PosCodeDescriptionQty
1
PUMP HEAD W928
47121441×1Available
View
4
O-RING 17,12X2,62 (3068)
90384100×6Available
View
5
VALVE SEAT
36200366×6Available
View
6
VALVE PLATE
36200176×6Available
View
7
SPRING D. 9,4X14,8
94737600×6Available
View
8
VALVE CAGE
36200251×6Available
View
9
O-RING 20,29X2,62(3081)
90384700×6Available
View
10
PLUG M 24X1,5X7,5
98222400×6Available
View
11
VALVE ASSY.
36703201×6Available
View
12
SCREW M 8x16 UNI 5931
99303900×8Available
View
13
CLOSED SIDE COVER (47-66)
47151122×1Available
View
14
O-RING 67,95X2,62 (3268)
90391300×2Available
View
15
TAPER BEARING
91837500×2Available
View
16
OIL SEAL 22x32x5
90162500×3Available
View
17
BUSHING 22X25X30
90912600×3Available
View
18
CRANKCASE
47010822×1Available
View
19
OIL DIP-STICK G3/8X80
98210600×1Available
View
20
O-RING D.133.02X 2,62(3525)
90392200×1Available
View
21
CRANKSHAFT C.16 S.p.f. U.S.
47021735×1Available
View

Need multiple parts? Request a bundled quote

64 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official W928 parts list — Industrial Pumps (Series 47)

Recommended Spare Parts

Spare Parts

KIT 109 PACKING D.16 + RESTOP

34010901

Accessories

HEX-HEAD SCREW M08X70 UNI5737 10.9 Fe/Zn5c1A+De

99320600

Valves

VALVE PLATE

36200176

Accessories

PLUG G3/8X13

98210000

Spare Parts

KIT 107 PISTON BOLT

34010701

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

LOW PRESSURE PACKING 16X30X8.5

90264400

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

CRANKCASE

47010822

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Spare Parts

KIT 110 INTERM. RING D. 16

34011001

Accessories

CONNECTING-ROD PIN D.13X35,5

97738000
