Interpump PUMP E3E2517 R W/VALVE R
The Interpump E3E2517 is an industrial pump with integrated valve designed for high-pressure applications, delivering 17 L/min at 250 bar and 3400 rpm. Weighing 9.5 kg with 8.09 kW power rating, it suits compact…
SKU 3G-ITP-00722
Also listed as: E3E2517V000 · E3E2517V 000
Need installation or engineering help?
Ask a question
Product Description
The Interpump E3E2517 is an industrial pump with integrated valve designed for high-pressure applications, delivering 17 L/min at 250 bar and 3400 rpm. Weighing 9.5 kg with 8.09 kW power rating, it suits compact hydraulic systems requiring robust pressure control.
Frequently Asked Questions
What is the Interpump E3E2517 pump used for?
The Interpump E3E2517 is an industrial pump with integrated valve designed for high-pressure applications. It delivers 17 L/min at 250 bar and 3400 rpm, making it suitable for compact hydraulic systems that require robust pressure control, such as industrial cleaning or pressure testing.
What are the specifications of the Interpump E3E2517 pump?

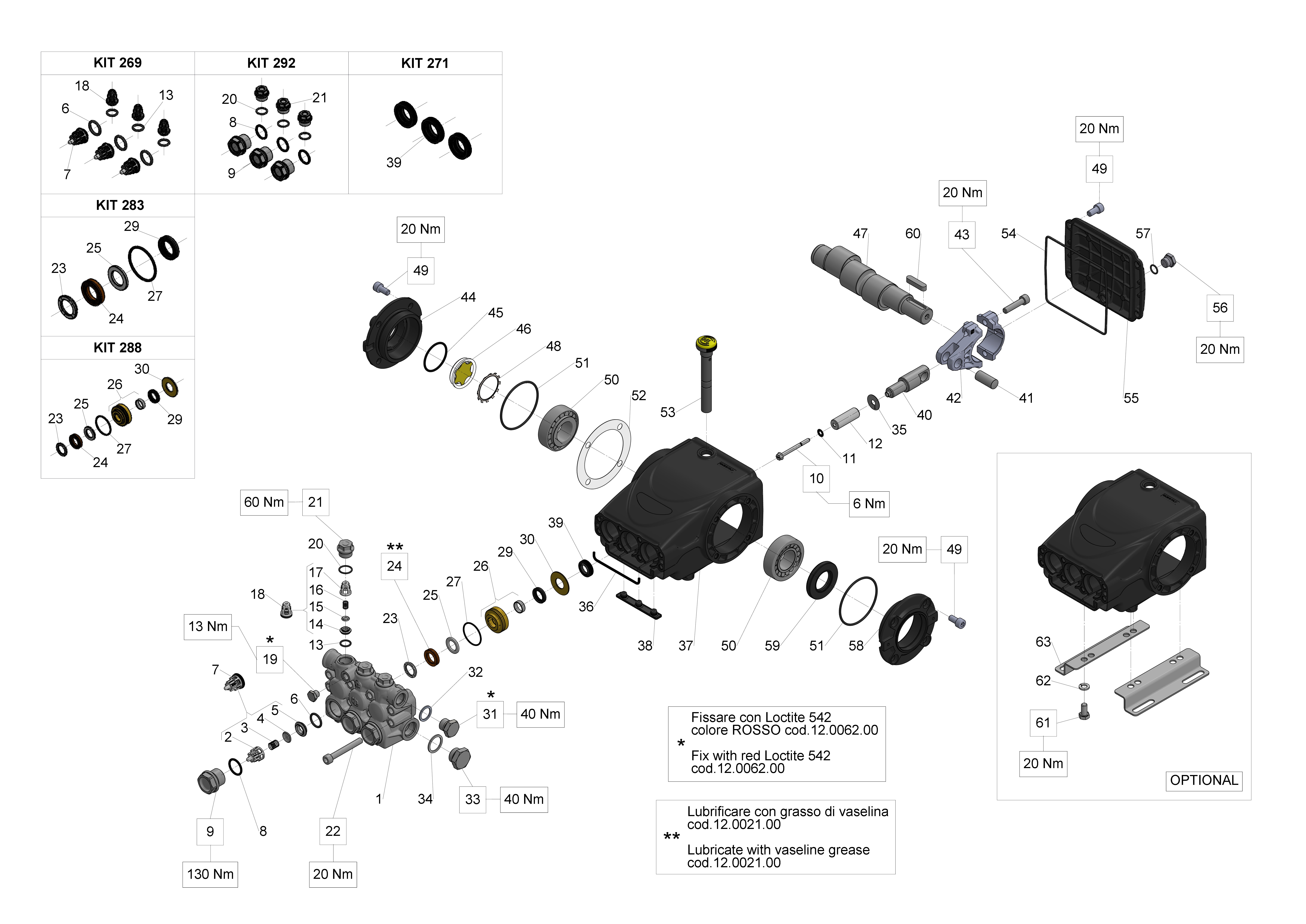

The Interpump E3E2517 pump delivers 17 L/min at 250 bar (25 MPa, 3625 psi) and 3400 rpm. It has a power rating of 8.09 kW (11 hp), weighs 9.5 kg, and measures 265x223x140 mm. The pump features a male shaft with key and a pump head with VH integrated valve.
Where to buy the Interpump E3E2517 pump in Singapore?
You can source the Interpump E3E2517 pump through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this Interpump industrial pump.
How to select the right Interpump pump for a hydraulic system?
To select the right Interpump pump, match the required flow and pressure to the system's demand. The E3E2517 provides 17 L/min at 250 bar and 3400 rpm. Ensure the pump's power requirement (8.09 kW) is within your motor's capacity and that the shaft configuration (male keyed) fits your coupling.
