Interpump PUMP E2C2809 R
The Interpump PUMP E2C2809 R is a compact industrial gear pump delivering 9 L/min at 275 bar (27.5 MPa / 4000 psi) and rated 4.71 kW (6.4 hp) at 1750 rpm. Weighing 7 kg with overall dimensions of 241.5 mm length…
SKU 3G-ITP-00483
Also listed as: E2C2809000 · E2C2809 000
Need installation or engineering help?
Ask a question
Product Description
The Interpump PUMP E2C2809 R is a compact industrial gear pump delivering 9 L/min at 275 bar (27.5 MPa / 4000 psi) and rated 4.71 kW (6.4 hp) at 1750 rpm. Weighing 7 kg with overall dimensions of 241.5 mm length, this pump is engineered for high-pressure industrial applications across Singapore and SE Asia. 3G Electric supplies the E2C2809 R as an authorised Interpump distributor with full DDP logistics support for regional delivery.
Frequently Asked Questions
What is the Interpump PUMP E2C2809 R used for?
The Interpump PUMP E2C2809 R is a compact industrial gear pump designed for high-pressure applications up to 275 bar. It is commonly used in hydraulic systems, pressure washing, and industrial fluid power equipment across Singapore and SE Asia.
What are the specifications of the Interpump PUMP E2C2809 R?
The Interpump PUMP E2C2809 R delivers 9 L/min at 275 bar (27.5 MPa / 4000 psi) and is rated 4.71 kW (6.4 hp) at 1750 rpm. It weighs 7 kg with overall dimensions of 241.5 mm length. The pump features a male shaft with key and a pump head with integrated VH valve.
Where to buy the Interpump PUMP E2C2809 R in Singapore?
3G Electric supplies the Interpump PUMP E2C2809 R as an authorised Interpump distributor. We handle full DDP logistics, customs clearance, and delivery to Singapore. Contact us for pricing and lead time on this high-pressure industrial pump.
How to install the Interpump PUMP E2C2809 R?
Install the Interpump PUMP E2C2809 R on a rigid, level base aligned with the drive shaft. Use flexible hoses to avoid pipe strain. Ensure the oil level is correct via the dipstick and that all seals and O-rings are properly seated before startup. Refer to the Interpump manual for torque specifications.
Used in
Common applications for InterpumpSpare Parts & Repair Kits

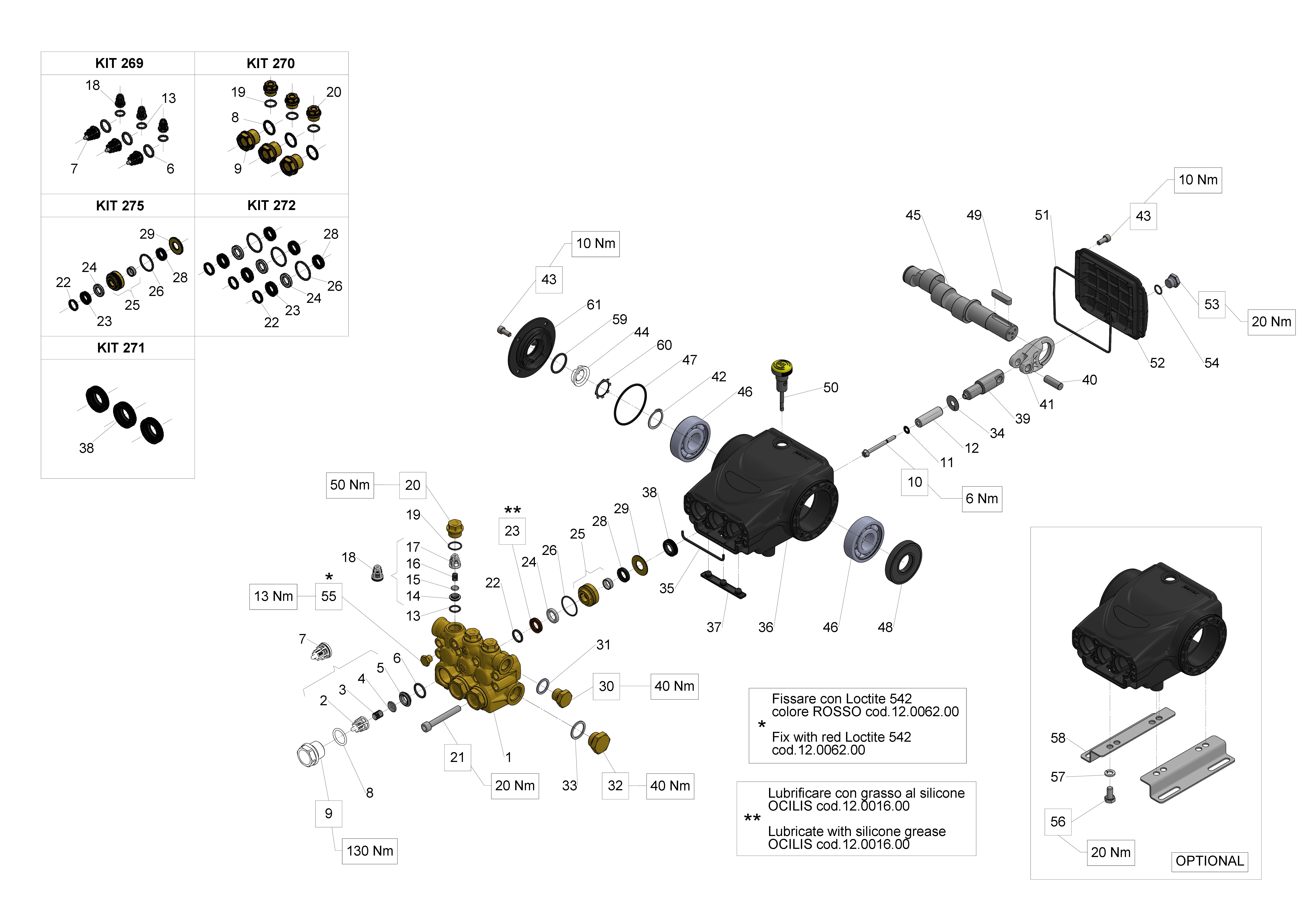

Official E2C2809 parts list — 110 parts, 64 available in catalog
Repair Kits — Order These for Routine Maintenance
Individual Components
Need multiple parts? Request a bundled quote
64 parts available in our catalog — get a single quote with volume pricing
Official E2C2809 parts list — Industrial Pumps (Series 58 E2)
Recommended Spare Parts
