Interpump PUMP E2C2016 R

Technical Documents

(1)
1 Technical Document Available
Sign in or create an account to download

Complete Solution

Need installation, maintenance, or a bundled quote?
Our engineers can help with product selection, system design, installation, and ongoing service — all from one partner.
InterpumpPumps & Compressors
Available

Interpump PUMP E2C2016 R

SKU 3G-ITP-00461

Brand
Interpump
Item
PUMP E2C2016 R
Category
Pumps & Compressors

Technical Specifications

Interpump
Flow Rate
16 L/min
Pressure
200 bar
Power
6.1 kW
Speed
1750 RPM
Weight
7 kg
Dimensions
241.5 mm
Power
8.3 HP
Flow (US)
4.22 GPM
Pressure
20 MPa
Pressure
2900 PSI
Sign in to view pricing
Create a free account to submit your RFQ and download technical documents.

Solutions Engineering

Need guidance on product selection or system design?
Contact Our Engineering Team
Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump PUMP E2C2016 R delivers reliable performance for industrial applications requiring consistent hydraulic power. This Italian-engineered pump operates at 1750 RPM, generating 6.1 kW with a maximum pressure of 200 bar, making it ideal for manufacturing, construction, and mobile equipment sectors. With a flow rate of 16 L/min and compact dimensions of 241.5mm, the unit combines efficiency with space-saving design. Weighing just 7 kg, this industrial pump is suitable for high-pressure systems demanding durability and precision. Available from 3G Electric Singapore, an Interpump distributor serving the region's industrial equipment needs.

Spare Parts & Repair Kits

Official E2C2016 parts list — 242 parts, 64 available in catalog

Official Parts List

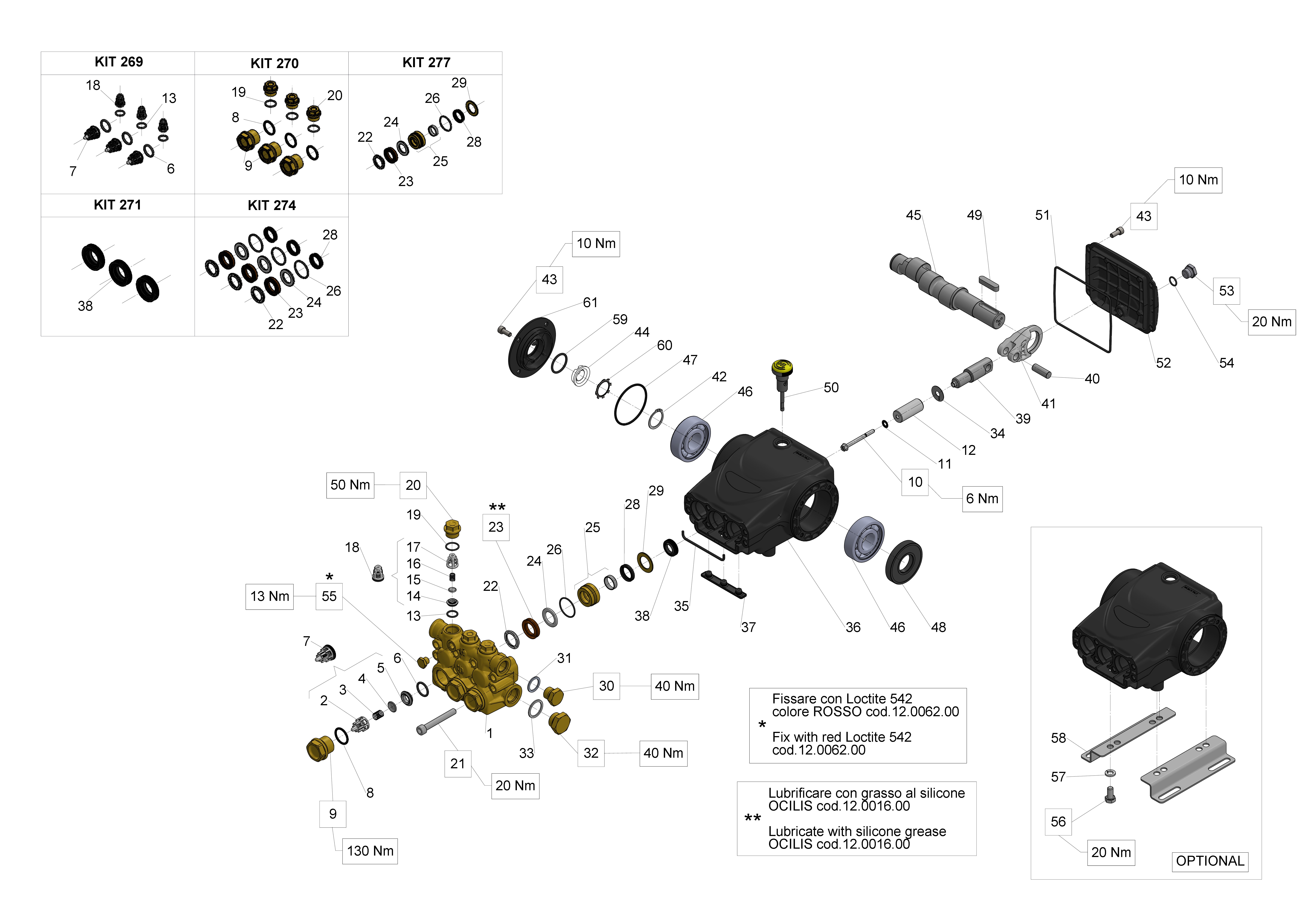

Exploded Diagram — Male shaft (key)View full size
E2C2016 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT270
KIT 270 VALVE PLUGS 58 SERIES
34027001×1Available
View
KIT271
View
KIT274
KIT 274 PACKING D.18 58 SERIES
34027401×1Available
View

Individual Components

PosCodeDescriptionQty
1
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17
98222600×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.18X42
58040209×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
O-RING 15,60X1,78 (2062)
90359300×3Available
View
20
VALVE CAP M18X1,5X10
98213700×3Available
View

Need multiple parts? Request a bundled quote

64 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official E2C2016 parts list — Industrial Pumps (Series 58 E2)

Recommended Spare Parts

Spare Parts

O-RING 8,73X1,78 - (108)

90358100

Spare Parts

PUMP CRANKCASE

58010022

Accessories

CIRCLIP D. 25 UNI 7435

90063500

Spare Parts

SPONGE GASKET D.3X94

58210582

Valves

VALVE PLATE

36200176

Accessories

PLUG G3/8X13

98210000

Spare Parts

SEAL D. 18X24X5 L.P.

90265000

Spare Parts

RING FOR SEAL D.18

58210870

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

INLET NIPPLE G 3/4

36318251

Spare Parts

O-RING 26,70X1,78 (2106)

90360600

Accessories

WASHER 6,4X10X0,7

96693800
