InterpumpPumps & Compressors

Available

Interpump PUMP T1311

SKU 3G-ITP-03809

Brand

Interpump

Item

PUMP T1311

Category

Pumps & Compressors

Technical Specifications

Interpump

Flow Rate

15 L/min

Pressure

130 bar

Power

4.04 kW

Weight

14.5 kg

Power

5.5 HP

Flow (US)

3.96 GPM

Pressure

13 MPa

Pressure

1885 PSI

rotation rpm

1000

dimensions mm

321x234x176

Sign in to view pricing

Create a free account to submit your RFQ and download technical documents.

Log In Create Free Account

Pair with a Service

Installation & Commissioning

Professional setup and verification by our technicians

Ongoing Maintenance Plan

Scheduled preventive maintenance for this equipment

Product + Service Bundle

Combined quote for equipment, installation, and service

Solutions Engineering

Need guidance on product selection or system design?

Contact Our Engineering Team

Interpump Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Interpump T1311 high-pressure plunger pump — 15 L/min at 130 bar (1885 PSI). 4.04 kW / 5.5 HP at 1000 RPM. Triplex design, 14.5 kg. Dimensions: 321x234x176 mm. Genuine Italian-engineered industrial pump from 3G Electric Singapore.

Spare Parts & Repair Kits

Official T1311 parts list — 126 parts, 63 available in catalog

Official Parts List

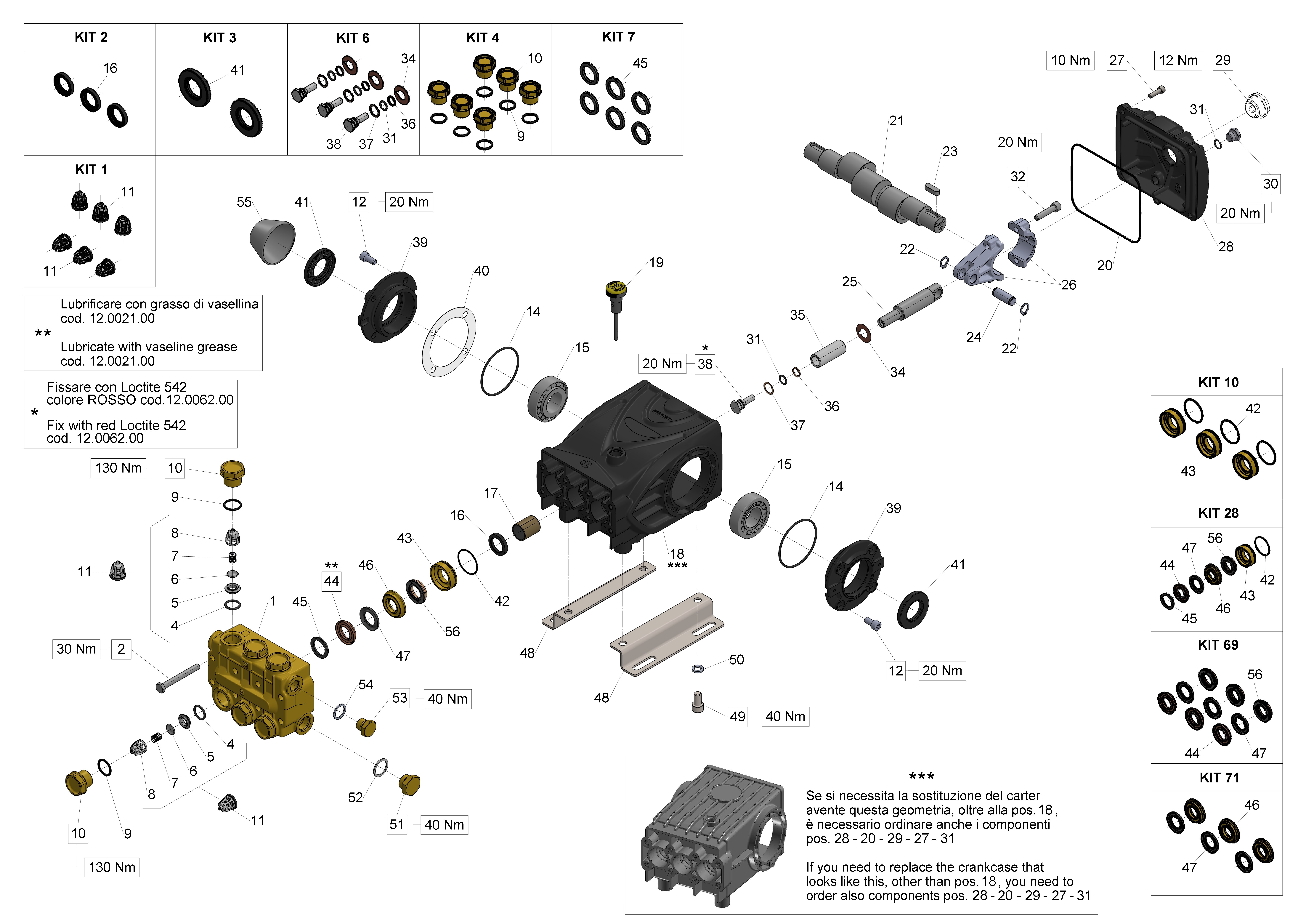

Exploded Diagram — Male shaft (key)View full size

T1311 — Male shaft (key)

Repair Kits — Order These for Routine Maintenance

KIT1

KIT 1 INTAKE/DELIVERY VALVE

34000101×1Available

KIT2

KIT 2 OIL SEAL D. 22X32X5,5

34000201×1Available

KIT3

KIT 3 OIL SEAL D.30X55X7

34000301×1Available

KIT4

KIT 4 INTAKE/DEL. VALVE CAPS

34000401×1Available

KIT6

KIT 6 PISTON BOLT

34000601×1Available

KIT7

KIT 7 HEAD RING D.20

34000701×1Available

KIT10

KIT 10 PACKING RETAINER D.20

34001001×1Available

KIT28

KIT 28 COMPL.SEAL FOR PIST.D20

34002801×1Available

KIT71

KIT 71 INTERMEDIATE RING D.20

34007101×1Available

Individual Components

PosCodeDescriptionQty

1

MANIFOLD "T" T1311

47120841×1Available

2

HEX-HEAD SCREW M08X70 UNI5737 10.9 Fe/Zn5c1A+De

99320600×8Available

4

O-RING 17,12X2,62 (3068)

90384100×6Available

5

36200366×6Available

6

36200176×6Available

7

SPRING D. 9,4X14,8

94737600×6Available

8

36200251×6Available

9

O-RING 20,29X2,62(3081)

90384700×6Available

10

98222000×6Available

11

36703201×6Available

12

SCREW M 8x16 UNI 5931

99303900×8Available

13

CLOSED SIDE COVER (47-66)

47151122×1Available

14

O-RING 67,95X2,62 (3268)

90391300×2Available

15

91837500×2Available

16

OIL SEAL 22x32x5

90162500×3Available

17

BUSHING 22X25X30

90912600×3Available

18

47010822×1Available

19

OIL DIP-STICK G3/8X80

98210600×1Available

20

O-RING D.133.02X 2,62(3525)

90392200×1Available

21

CRANKSHAFT C.16 S.p.f. U.S.

47021735×1Available

Need multiple parts? Request a bundled quote

63 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote

✓ Genuine manufacturer parts✓ Expert technical support✓ Worldwide shipping

Official T1311 parts list — Industrial Pumps (Series 47)

Recommended Spare Parts

Accessories

CONNECTING-ROD PIN D.13X35,5

97738000

Spare Parts

PISTON SCREW

47219566

Accessories

HEX-HEAD SCREW M08X70 UNI5737 10.9 Fe/Zn5c1A+De

99320600

Accessories

WASHER 14X28X0,5

96728600

Valves

VALVE PLATE

36200176

Accessories

PLUG G3/8X13

98210000

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

KIT 7 HEAD RING D.20

34000701

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Spare Parts

CRANKCASE

47010822

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

Spare Parts

HEAD RING D. 20

47100051
