InterpumpPumps & Compressors

Interpump PUMP SN3E2815

The Interpump PUMP SN3E2815 is a compact industrial gear pump delivering 15 L/min at 275 bar, rated for 7.87 kW at 3400 rpm. Weighing 9.5 kg, it serves high-pressure hydraulic systems in manufacturing and mobile…

SKU 3G-ITP-03802

Also listed as: SN3E2815000 · SN3E2815 000

Brand
Interpump
Item
PUMP SN3E2815
Category
Pumps & Compressors
UNSPSC
40151527 — Plunger pumps
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Authorized Distributor
Direct from OEM
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Interpump
Flow Rate
15 L/min
Pressure
275 bar
Power
7.87 kW
Weight
9.5 kg
Power
10.7 HP
Flow (US)
3.96 GPM
Pressure
27.5 MPa
Pressure
4000 PSI
rotation rpm
3400
dimensions mm
265x223x140
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Interpump PUMP SN3E2815 is a compact industrial gear pump delivering 15 L/min at 275 bar, rated for 7.87 kW at 3400 rpm. Weighing 9.5 kg, it serves high-pressure hydraulic systems in manufacturing and mobile equipment applications.

Frequently Asked Questions

What is the Interpump PUMP SN3E2815 used for?

The Interpump PUMP SN3E2815 is a compact industrial gear pump used in high-pressure hydraulic systems. It is commonly applied in manufacturing machinery and mobile equipment where reliable fluid power at 275 bar and 15 L/min is required.

What are the specifications of the Interpump PUMP SN3E2815?

The Interpump PUMP SN3E2815 delivers 15 L/min at 275 bar, with a power rating of 7.87 kW at 3400 rpm. It weighs 9.5 kg and measures 265x223x140 mm. The pump is designed for high-pressure hydraulic applications.

Where to buy the Interpump PUMP SN3E2815 in Singapore?

You can source the Interpump PUMP SN3E2815 through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this industrial gear pump.

How to install the Interpump PUMP SN3E2815?

Mount the Interpump PUMP SN3E2815 on a rigid base, align the shaft coupling per the manufacturer's instructions, and connect suction and pressure lines with proper seals. Ensure the hydraulic fluid is clean and at the recommended viscosity before startup.

Used in

Common applications for Interpump
Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service
Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry
Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks
Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines
Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection

Spare Parts & Repair Kits

Official SN3E2815 parts list66 parts, 66 available in catalog

Official Parts List

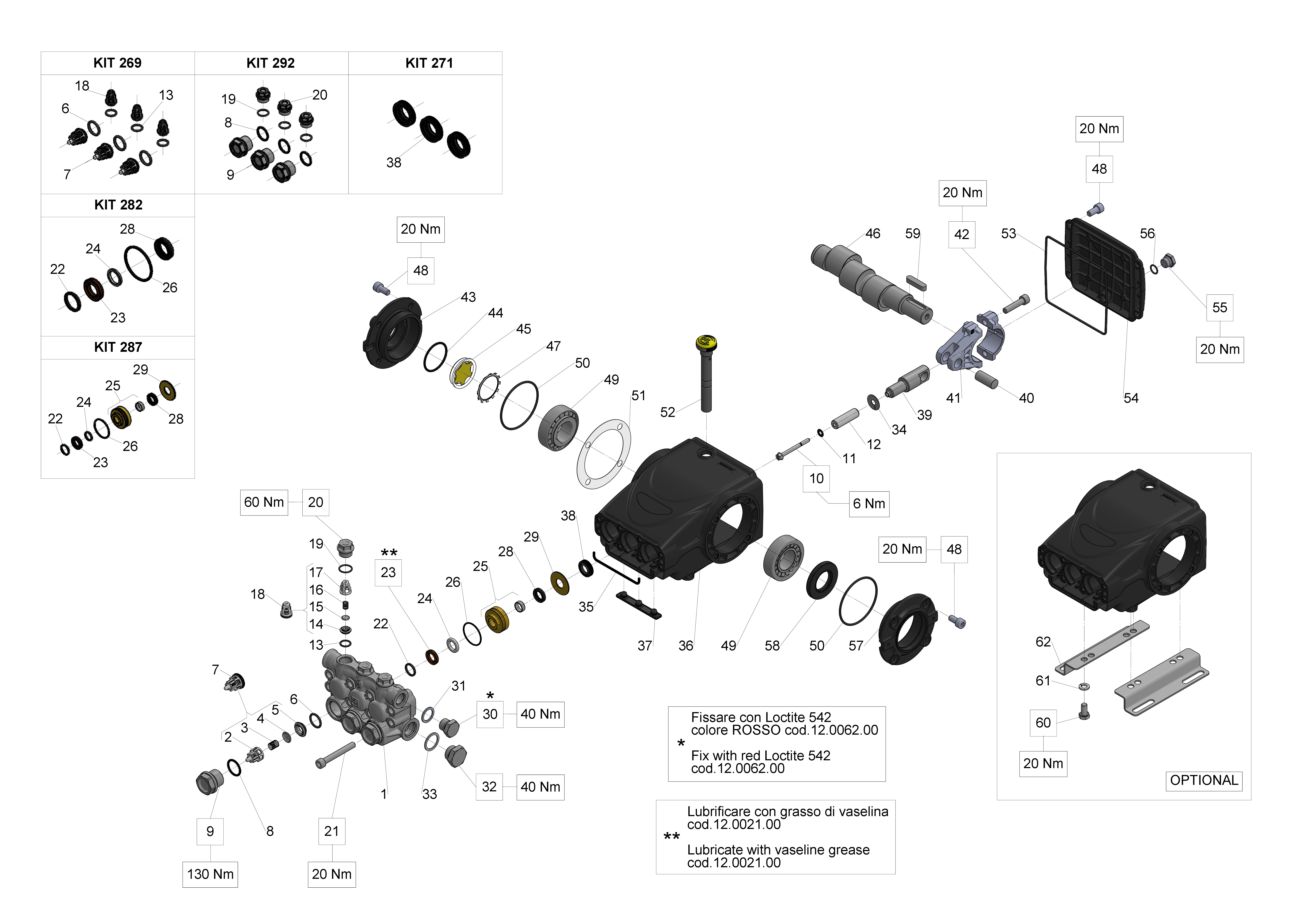

SN3E2815 — Male shaft (key) exploded diagram

Repair Kits — Order These for Routine Maintenance

KIT269
KIT 269 INTAKE/DELIVERY VALVES
34026901×1Available
View
KIT271
View
KIT282
KIT 282 PACKING D.13 59 SERIES
34028201×1Available
View
KIT287
KIT 287 CPL.SEAL D.13 59 SER.
34028701×1Available
View
KIT292
View

Individual Components

PosCodeDescriptionQty
1
MANIFOLD D. 13 (SN3) SN3E2815
59122436×1Available
View
2
VALVE CAGE
36202551×3Available
View
3
SPRING D. 9,4X14,8
94737600×3Available
View
4
VALVE PLATE
36200176×3Available
View
5
VALVE SEAT
36200366×3Available
View
6
O-RING 17,12X2,62 (3068)
90384100×3Available
View
7
INTAKE/DELIVERY VALVE
36711501×3Available
View
8
O-RING 20,29X2,62(3081)
90384700×3Available
View
9
VALVE CAP M24X1,5X17 NICKEL
98222500×3Available
View
10
SCREW M05X55 SPEC. A2-70
99169000×3Available
View
12
PISTON D.13X42
58040009×3Available
View
13
O-RING D. 12X2 (120-20)
90367400×3Available
View
14
VALVE SEAT
36211366×3Available
View
15
SPHERICAL VALVE
36211276×3Available
View
16
SPRING D.6.2x10.5 S.S.
94733300×3Available
View
17
VALVE CAGE
36211151×3Available
View
18
OUTLET VALVE
36719301×3Available
View
19
O-RING 15,60X1,78 (2062)
90359300×3Available
View
20
PLUG M18X1,5X10 D.23 (NICK.)
98213750×3Available
View

Need multiple parts? Request a bundled quote

66 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official SN3E2815 parts listIndustrial Pumps (Series 59 E3)

Recommended Spare Parts

Valves

VALVE PLATE

36200176

Spare Parts

ANTI-EXTR.RING D.13X21X3

90507650

HEAD RING D. 13

Spare Parts

HEAD RING D. 13

44100251

Spare Parts

CONNECTING ROD COMPLETE

59030001

Accessories

WASHER 21,5X27X1,5

96751400

KEY 8(h9)X7X35 UNI 6604/A

Accessories

KEY 8(h9)X7X35 UNI 6604/A

91489200

Valves

VALVE CAP M24X1,5X17 NICKEL

98222500

MANIFOLD D. 13 (SN3) SN3E2813

Spare Parts

MANIFOLD D. 13 (SN3) SN3E2813

59122436

Spare Parts

RING FOR SEAL D.13

59210570

Spare Parts

SPONGE GASKET D.3X103

59211082

KIT 269 INTAKE/DELIVERY VALVES

Spare Parts

KIT 269 INTAKE/DELIVERY VALVES

34026901

Spare Parts

PACKING D.13X20X5 LP

90260100

View full cross-reference for Interpump 3G-ITP-03802
